Engine Type
998cc liquid-cooled DOHC inline three-cylinder; 12 valves
Bore x Stroke
80.0mm x 66.2mm
Fuel Delivery
Yamaha Fuel Injection (YFI); three 41mm Mikuni® throttle bodies
Ignition
TCI: Transistor Controlled Ignition
Transmission
Manual foot clutch; 5-speed sequential with reverse
Final Drive
On-Command; 3-way locking differential; selectable 2WD and 4WD with diff lock; shaft drive
Suspension / Front
Independent double wishbone w/anti-sway bar, fully adjustable FOX® 2.5 Podium® X2 Shocks; 16.2-in travel
Suspension / Rear
Independent double wishbone w/anti-sway bar, fully adjustable FOX® 2.5 Podium® X2 Shocks ; 17.0-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Dual hydraulic disc

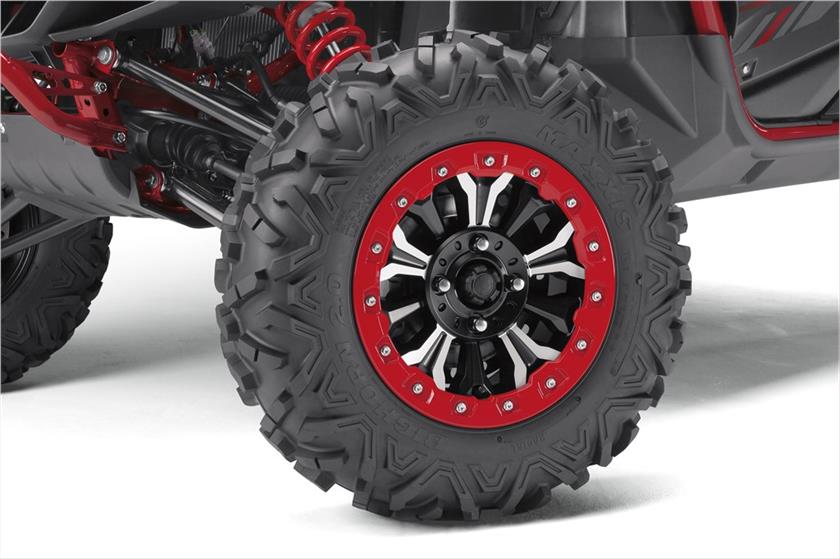

Tires / Front
27 x 9.00R-14 Maxxis® MU09
Tirres / Rear
27 x 11.00R-14 Maxxis® MU10
